Features:

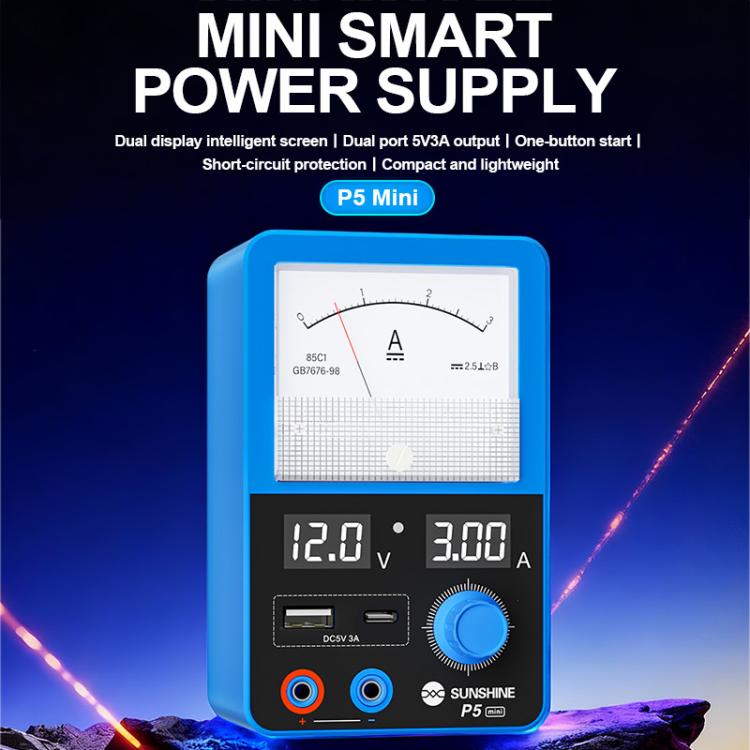

1. P5 Mini smart power supply, dual display intelligent screen, dual port 5V/3A output, one-button start, short-circuit protection, compact and lightweight

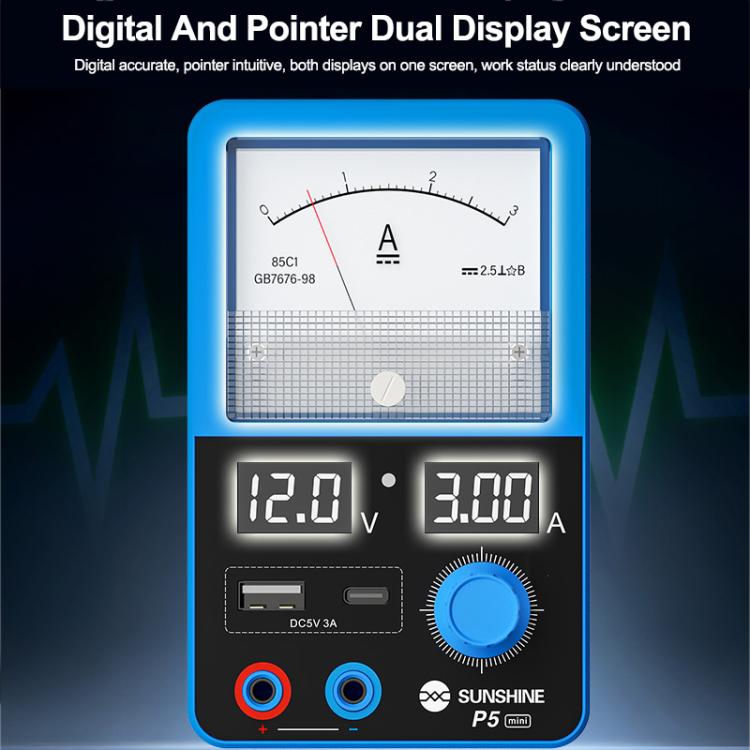

2. Digital And Pointer Dual Display Screen: Digital accurate, pointer intuitive, both displays on one screen, work status clearly understood

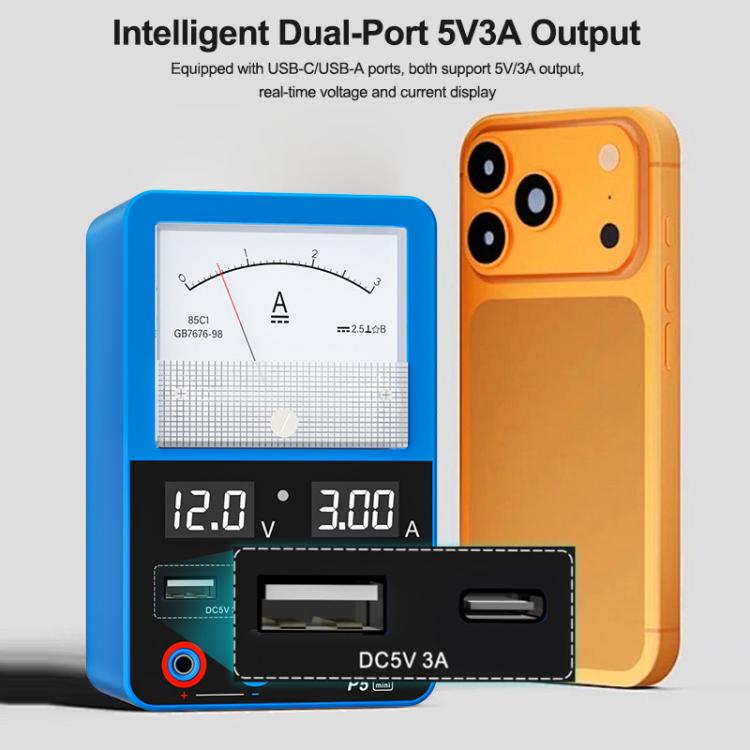

3. Intelligent Dual-Port 5V3A Output: Equipped with USB-C/USB-A ports, both support 5V/3A output, real-time voltage and current display

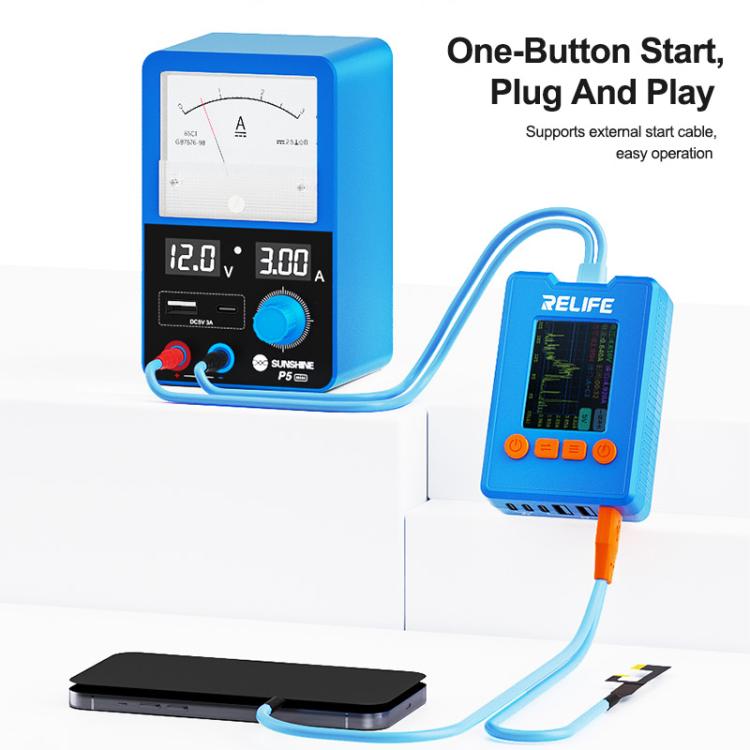

4. One-Button Start, Plug and Play: Supports an external start cable, easy operation

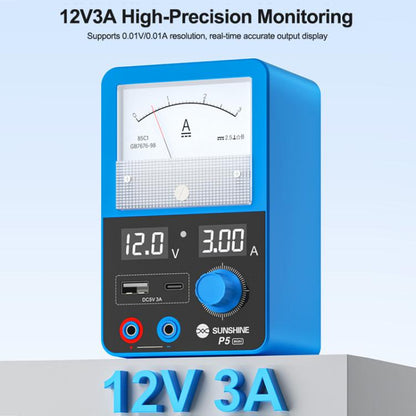

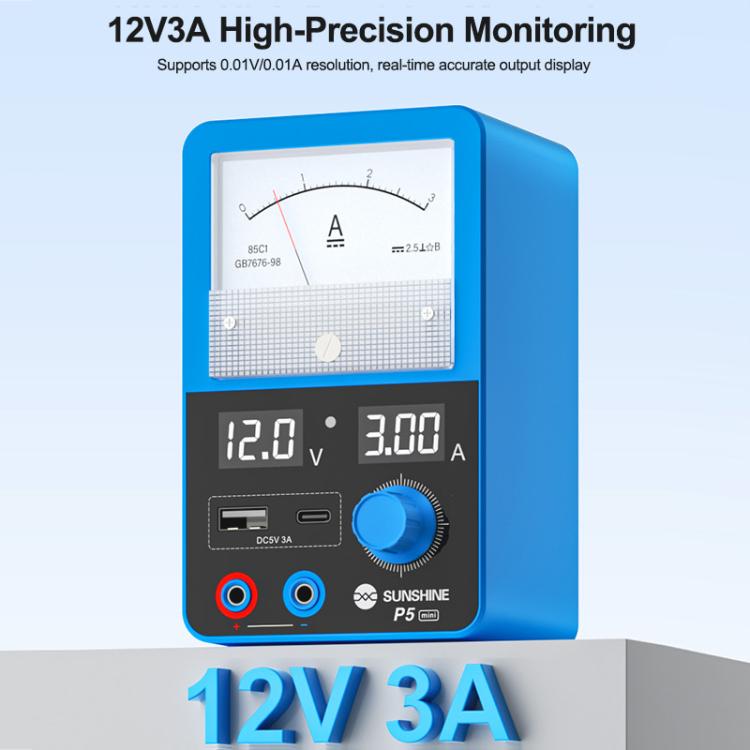

5. 12V/3A High-Precision Monitoring: Supports 0.01V/0.01A resolution, real-time accurate output display

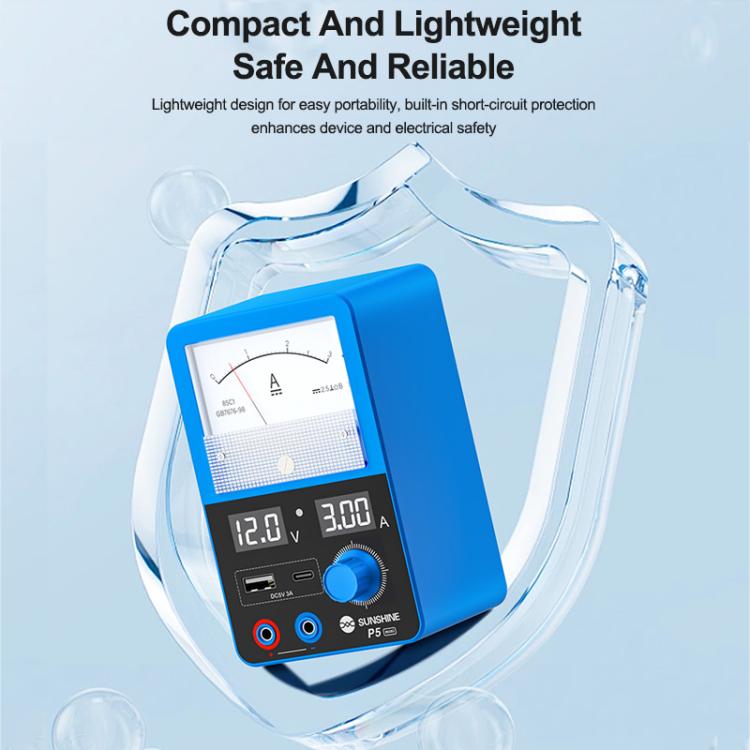

6. Compact and Lightweight, Safe and Reliable: Lightweight design for easy portability, built-in short-circuit protection enhances device and electrical safety
Specifications:
1. Model: P5 Mini
2. Input Voltage: AC110-240V
3. Output Voltage Range: 0-12V
4. Output Current Range: 0-3A
5. Maximum Output Power: 0-45W
6. Ripple: Voltage <=200nVrms
7. Output Temperature Coefficient: Voltage: 150ppm Current: 150ppm
8. Operating Environment: Indoor use; Altitude <=2000M; Temperature 0-40 degrees Celsius; Relative Humidity <=80%
9. Storage Environment: Ambient temperature: -10-70 degrees Celsius; Relative Humidity <=70%
10. Charging Interface: USB-A/C: 5V, 3A, fast charging not supported
11. Net Weight: about 280g

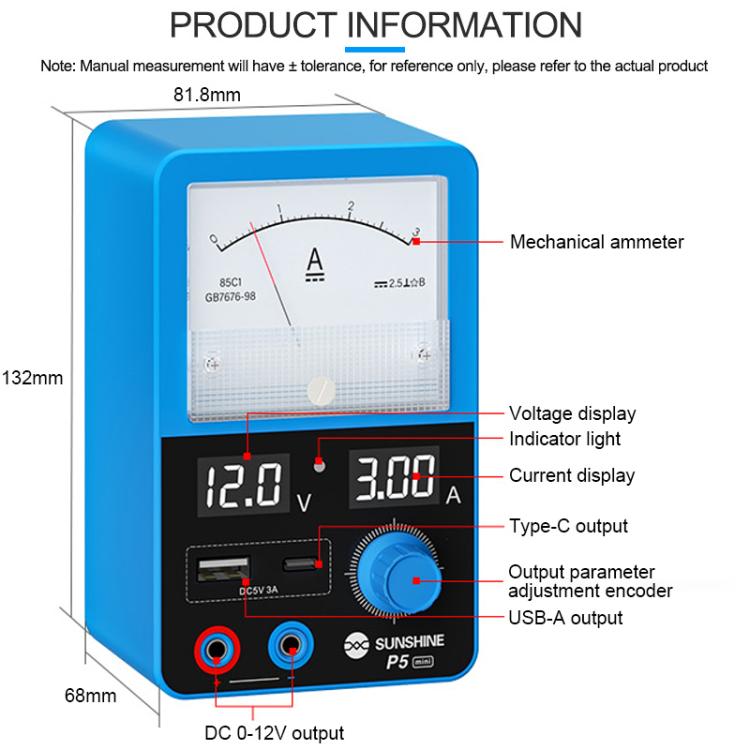

12. Product Size: 132 x 81.8 x 88mm

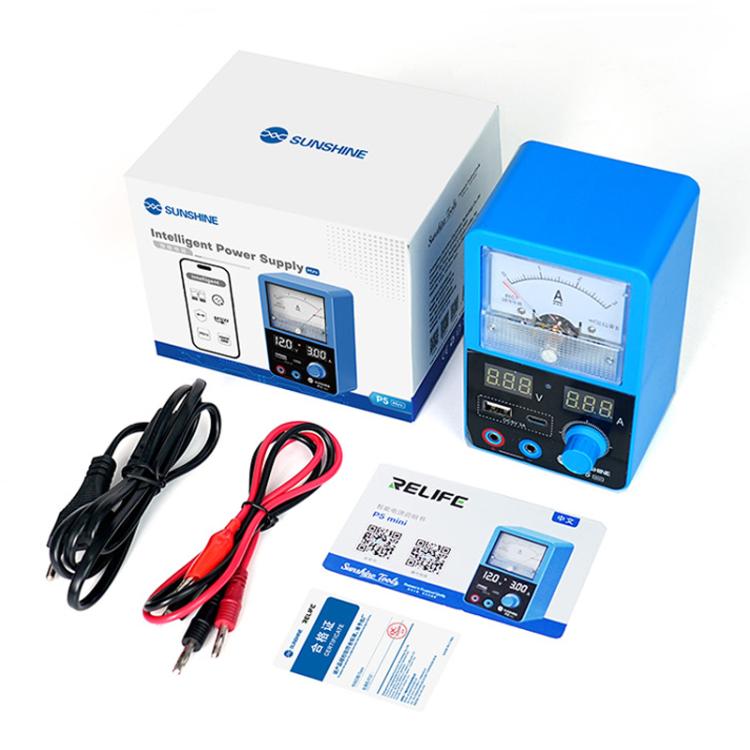

13. Package includes:
1 x Power Supply
1 x Power Cable
1 x Test Cable
Specification:
| Package Weight |
| One Package Weight |
0.60kgs / 1.33lb |
| One Package Size |
15cm * 13cm * 12cm / 5.91inch * 5.12inch * 4.72inch |
| Carton Weight |
11.80kgs / 26.01lb |
| Carton Size |
41cm * 38cm * 32cm / 16.14inch * 14.96inch * 12.6inch |
| Loading Container |
20GP: 534 cartons * 18 pcs = 9612 pcs
40HQ: 1241 cartons * 18 pcs = 22338 pcs
|
|
