Specification:
1. Soldering station input voltage: DC 24V/5-15A
2. PD3.1 Charging input voltage: DC 30V/10-15A
3. C10 soldering station output power: D245: 180W; D210: 100W; D115: 50W
DC voltage and current Measurement parameters:
1. Input voltage: 0-36V
2. Input current: 1uA-8A
3. Voltage resolution: >=0.1V
4. Current resolution: >=0.1uA

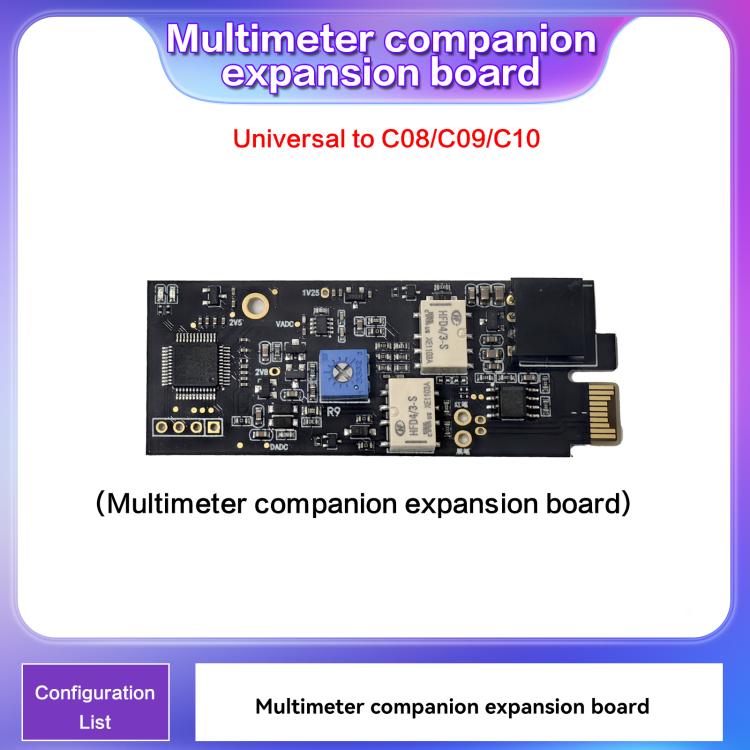

Multimeter companion measurement parameters:
1. Buzzer gear: 0 ohm resistance
2. Diode: 0.001-1999
3. DC tes: 0-24V
4. Resistance range: 0-50K
Features:
1. C10 waveform ammeter, ultra-high precision 0.1uA-8A current
2. Easy to find leakage: Accurate and reliable measurement data helps you complete your work efficiently
3. Switchable range data interface: You can choose according to your needs
4. Supports live streaming and screen projection: When live broadcasting maintenance, the data can be projected onto the screen so that fans can see it more clearly
5. Multi-protocol super fast charging: Support PD3.1/PE2.0/BC1.2/FCP/SCP/QC3.0VOOC/Super VOOC, and other charging protocols
6. Support D115/D210/D245 controllers
7. C10 soldering station features: Pick up the handle, and it will heat up in 1 second, tin in 3 seconds, and automatically sleep when you put down the handle. Support temperature curve, temperature grouping, and new UI interface
8. Note: Does not include a power plug and requires self-purchase
Specification:
| Package Weight |
| One Package Weight |
0.85kgs / 1.88lb |
| One Package Size |
25cm * 19cm * 10cm / 9.84inch * 7.48inch * 3.94inch |
| Carton Weight |
18.00kgs / 39.68lb |
| Carton Size |
52cm * 52cm * 40cm / 20.47inch * 20.47inch * 15.75inch |
| Loading Container |
20GP: 246 cartons * 20 pcs = 4920 pcs
40HQ: 572 cartons * 20 pcs = 11440 pcs
|
|
