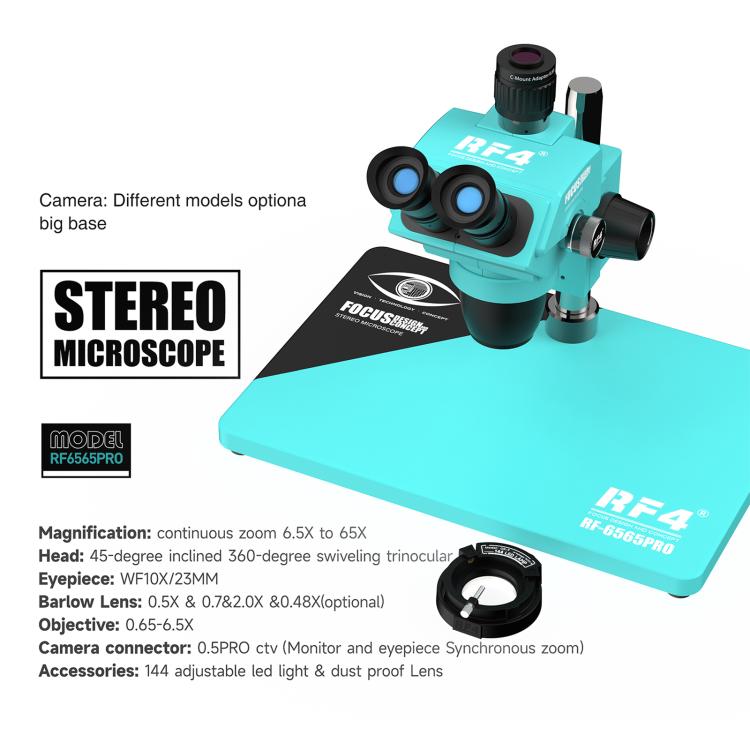

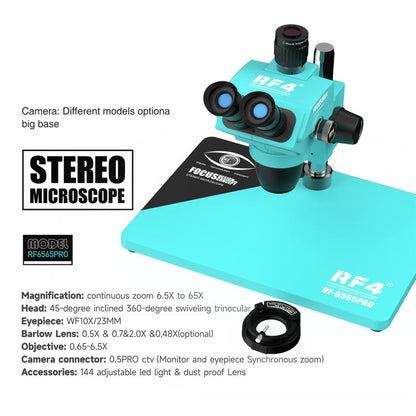

Specification:

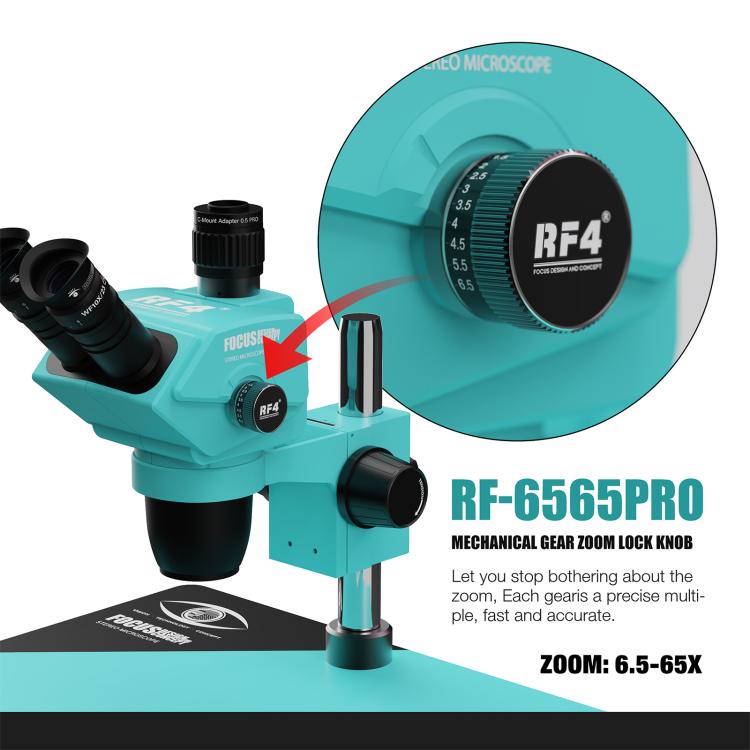

1. Magnification: Continuous zoom 6.5X to 65X
2. Head: 45-degree inclined 360-degree swiveling trinocular
3. Eyepiece: WF10X/22MM

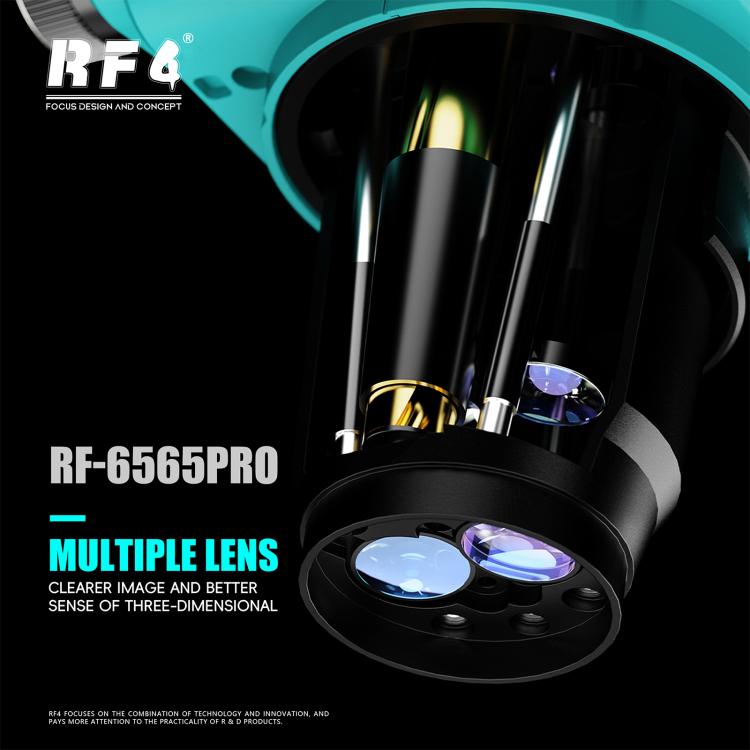

4. Objective: 0.65-6.5X
5. Camera connector: 0.5X
7. Monitor and eyepiece: Synchronous zoom
8. Accessories: 144 adjustable led lights & dust proof Lens

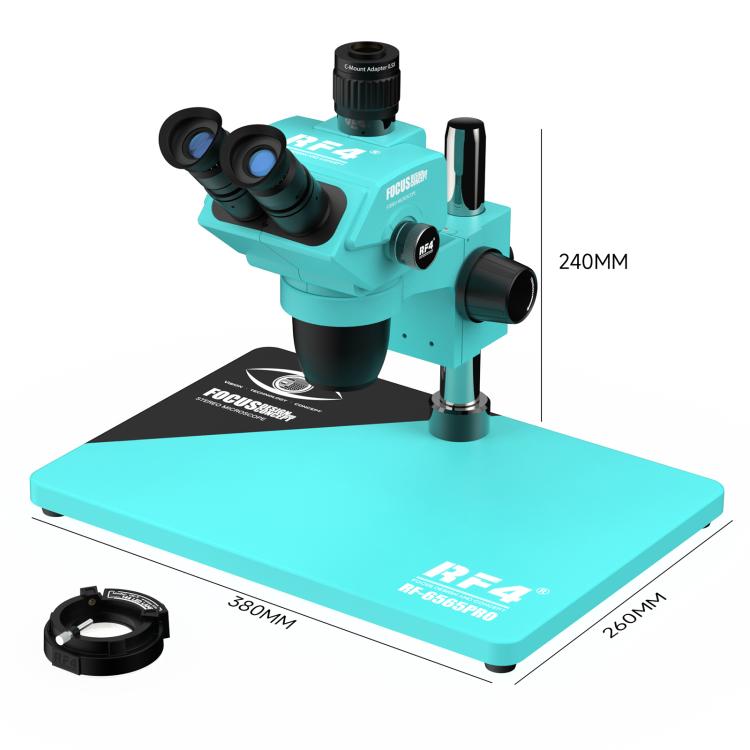

Support Parameters:
1. Column aperture: 32mm
2. Lens aperture: 76mm
3. Center distance: 155mm
4. Lifting range: 50mm

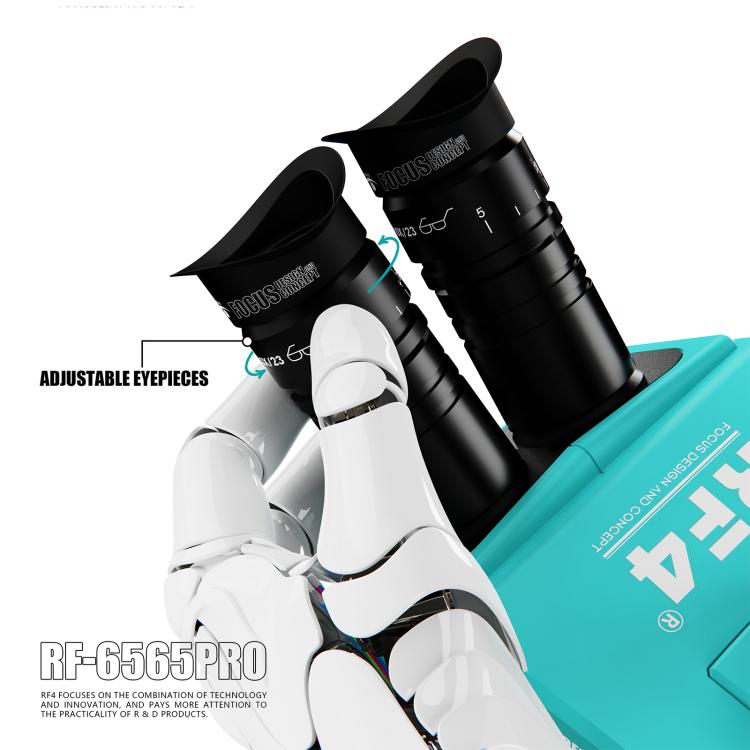

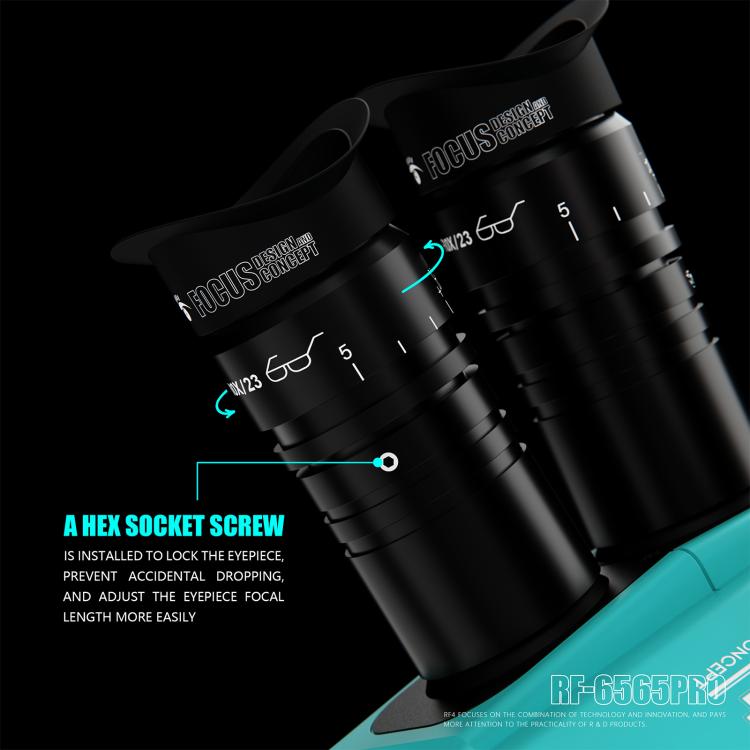

Wide-angle Eyepieces 10X/22:
1. Magnification: 10X
2. Wide field of view 22mm
3. Matching size: 30mm
4. Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

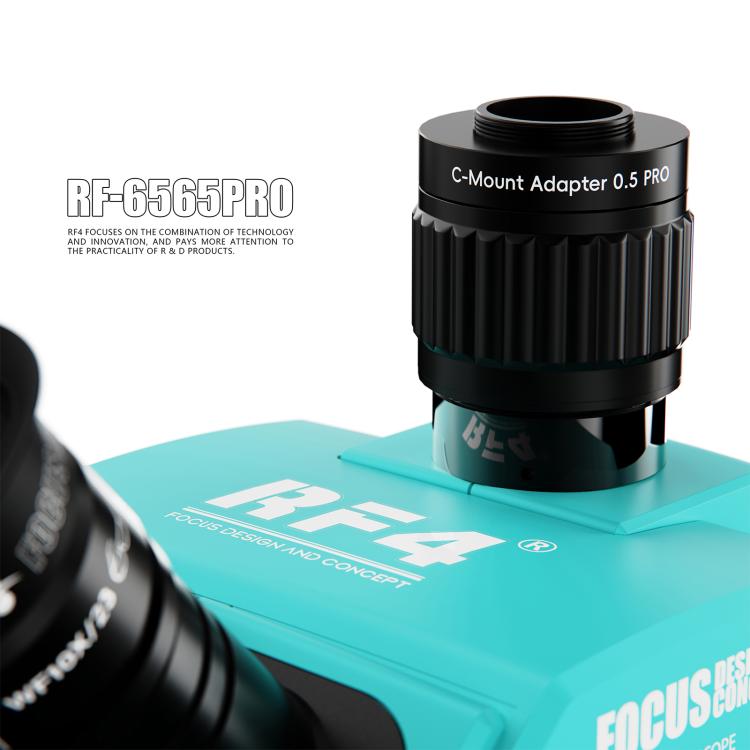

0.5X CTV Len:
1. The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
2. The adapter ring can use LCD to focus, this kind of focus method is manual focus
3. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

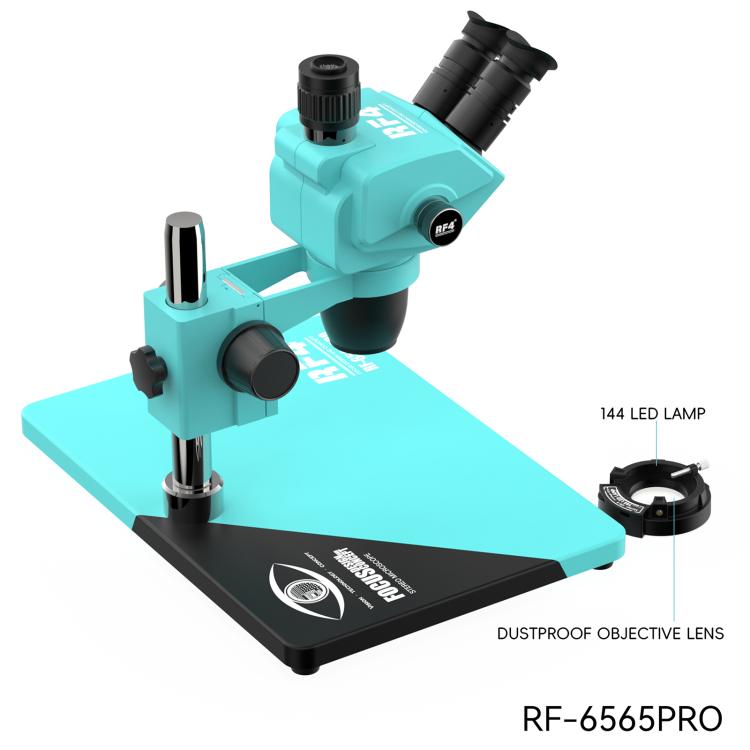

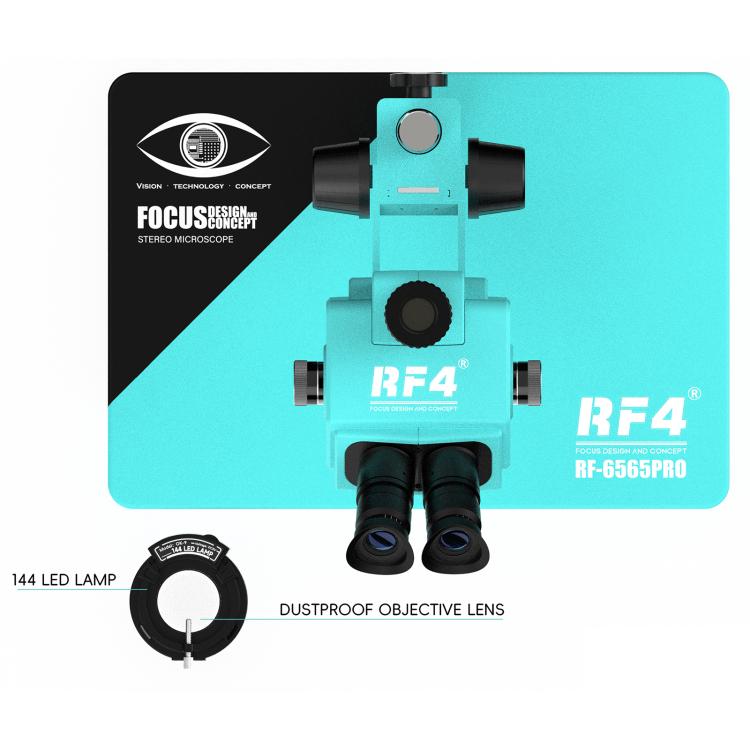

144 LED Ring Light:
1. Input: AC 100~240V 50/60Hz
2. Output: DC 12V, Max 700mA
3. Light color: White
4. Number of lights: 144 LEDs
5. Inside diameter: 60mm
Package includes:
1. Microscope x 1
2. Aluminum Alloy Plate x 1
3. 144 LED Light x 1
4. Dustproof Len x 1
5. 0.5X CTV Lens x 1
Specification:
| Package Weight |
| One Package Weight |
6.00kgs / 13.24lb |
| One Package Size |
42cm * 33cm * 26cm / 16.54inch * 12.99inch * 10.24inch |
| Carton Weight |
13.00kgs / 28.66lb |
| Carton Size |
44cm * 35cm * 53cm / 17.32inch * 13.78inch * 20.87inch |
| Loading Container |
20GP: 326 cartons * 2 pcs = 652 pcs 40HQ: 758 cartons * 2 pcs = 1516 pcs
|
|
