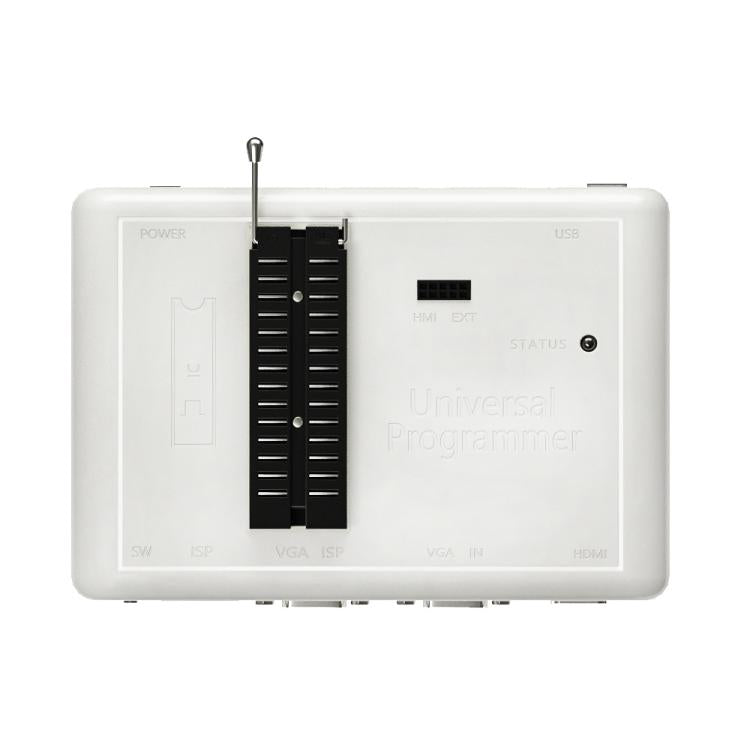

RT809H Universal Programmer EMMC Online ISP Reader/Writer For LCD TV & Laptop, RT809H

Features:
1. Intelligent Sensing: Chips can be placed arbitrarily on the socket (NAND chips require correct orientation). For common memories, no need to check direction; even if placed backwards, it won't burn the chip and can still read/write normally! Automatically identifies memory models, making it more suitable for beginners.
2. NAND_AUTO: Identifies most chips automatically before performing read/write operations.
3. EMMC_AUTO_ISP: Identifies most chips automatically before performing read/write operations.
4. Deep Sleep Function: After enabling, closing the software automatically powers off the programmer.
5. SELFTEST: Self-test function to detect any faults in the programmer.

Functions:
1. Supports offline read/write for 24/25/93/95 series Serial SPI FLASH and EEPROM.
2. Supports read/write for 26/27/28/29/30/39/49/50 series NOR FLASH/PROM.
3. Supports ISP online read/write for mainstream solution chips in LCD/LED flat-panel TVs and monitors.
4. Supports read/write for 18/KB90/NPCE/MEC16 series EC chips used in laptop motherboards.
5. Supports automatic parameter identification and offline read/write for NAND FLASH in TSOP48 and BGA packages.
6. Supports EMMC identification both online and offline, and read/write for BOOT/USER/RPMB/GPP areas.
7. Supports intelligent identification and arbitrary placement for most types of chips during offline read/write.
8. Features a high-speed USB interface with WHQL-certified USB drivers, achieving read/write speeds of up to 25MB/S.
9. Fully driver-based architecture, free software upgrades, mostly universal adapters – lowers user cost.
