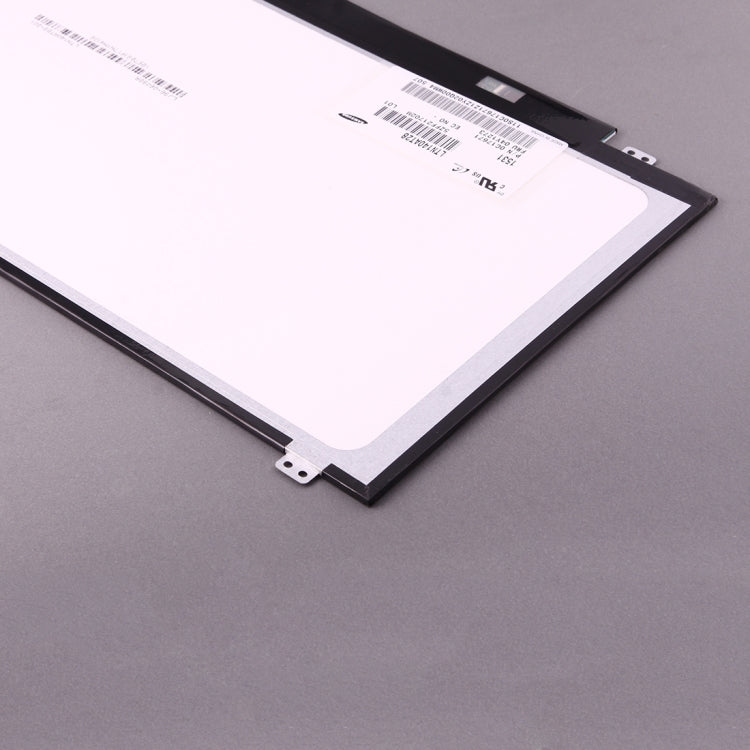

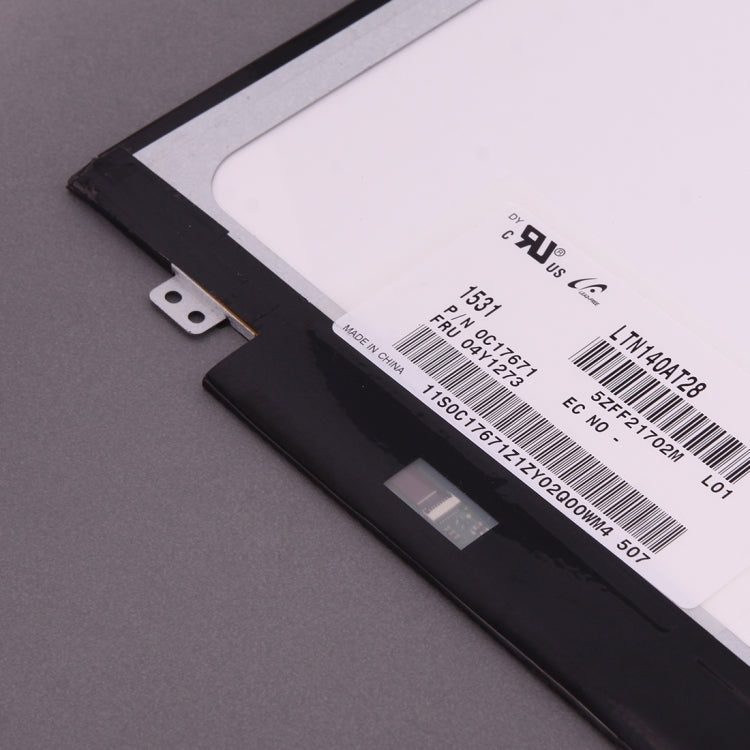

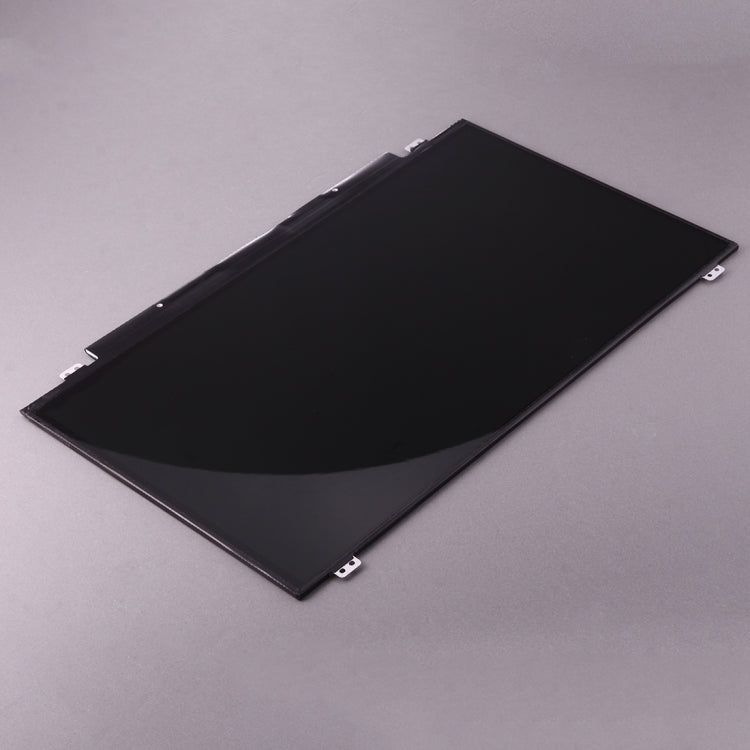

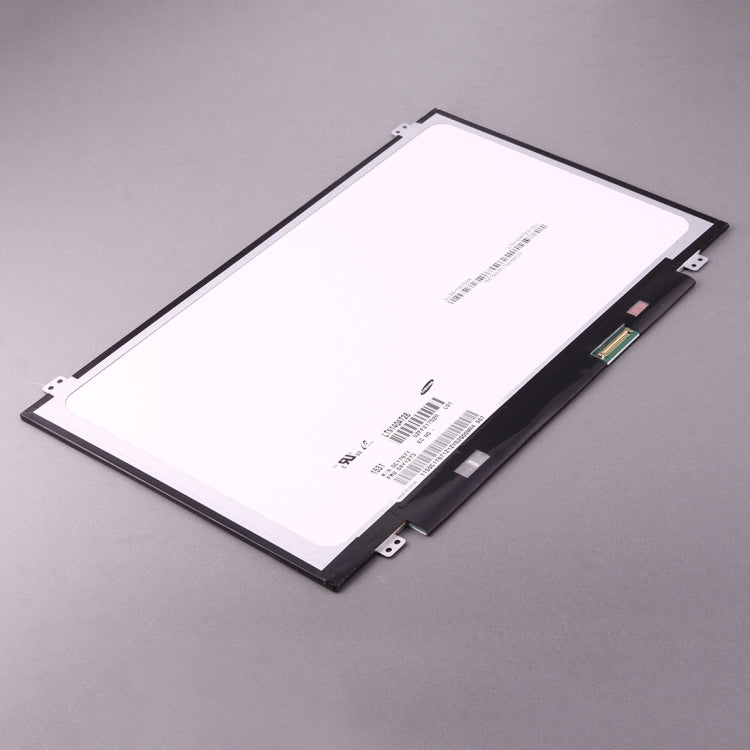

1. High quality replacement screen panel.
2. High resolution 1366 x 768 pixel.
3. 16:9 aspect ratio standard screen.

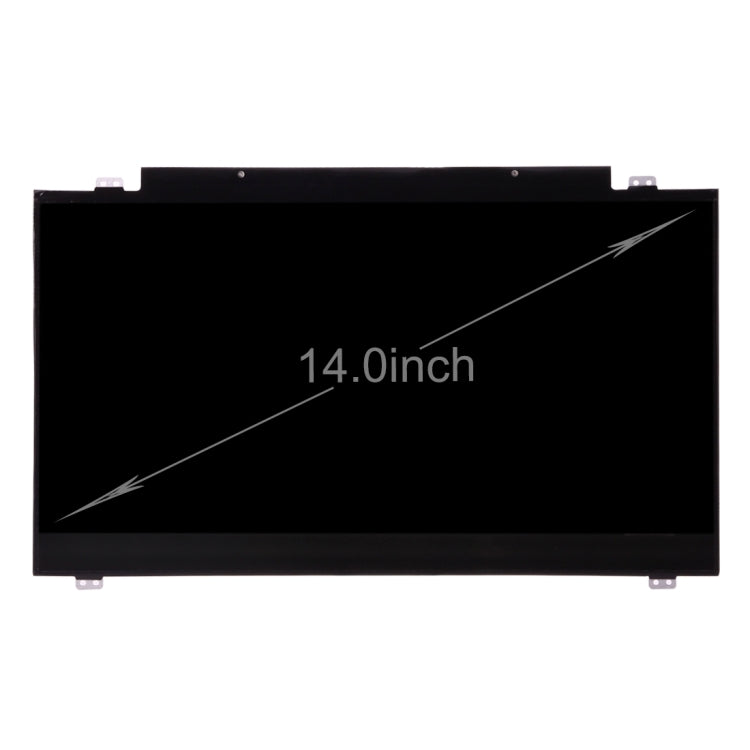

4. 14 inch diagonal screen size.
5. Backlight Lamp: LED type.
6. Suitable model: LTN140AT27 AT20 AT06 LP140WH2 B140XW03 B140XTN02.5.
Specification:
| General |
| Resolution |
1366 (RGB) x 768 (WXGA) |
| Connector |

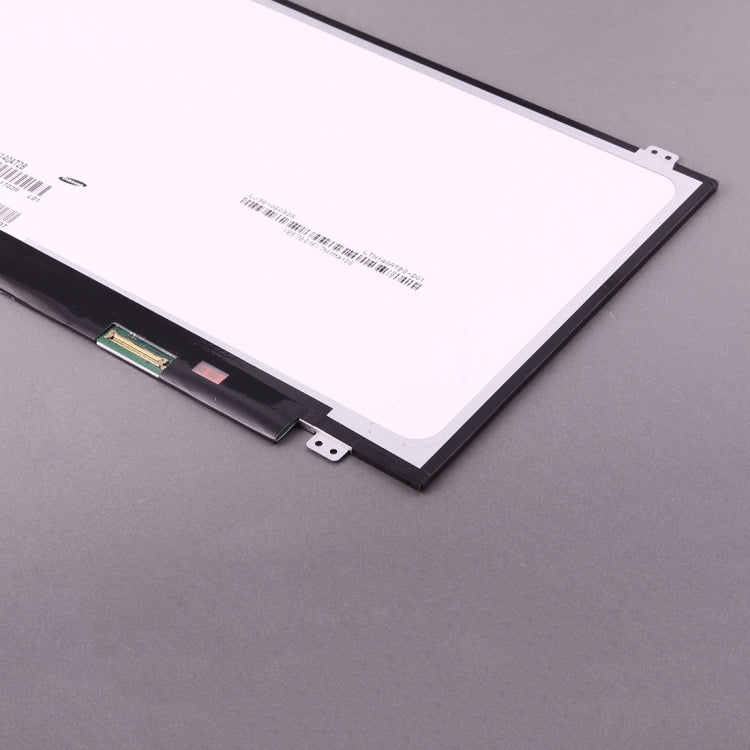

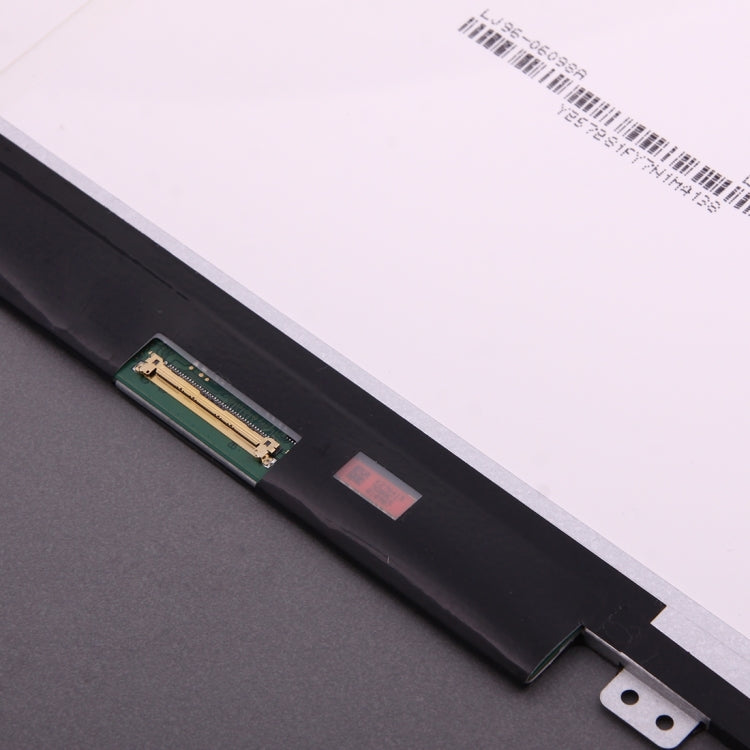

LVD (1 ch, 6 bit), 40 pin, Terminal |
| Working Mode |
TN, Normal white display, Transmissive |
| Display Color |
262k 45%(CIE1931) |
| Viewing Angle |
45/45/20/40(CR>=10) |
| Shape Style |
Medium thick screen (PCBA Straight, 3.4~4mm) |
| Backlight Type |
9S4P WLED, 15K hours, with LED diver |
| Response Speed |
12 (Typ.) (Tr + Td) ms |
| Display Size |
309.339 x 173.952mm |
|
| Environment |
| Operating Temperature |
0~50 Degrees Celsius |
| Storage Temperature |
-20 ~ 60 Degrees Celsius |
|
| Package Weight |
| One Package Weight |
1.15kgs / 2.54lb |
| One Package Size |
45cm * 33cm * 8cm / 17.72inch * 12.99inch * 3.15inch |
| Carton Weight |
12.50kgs / 27.56lb |
| Carton Size |
62cm * 40cm * 30cm / 24.41inch * 15.75inch * 11.81inch |
| Loading Container |
20GP: 358 cartons * 10 pcs = 3580 pcs
40HQ: 832 cartons * 10 pcs = 8320 pcs
|
|
